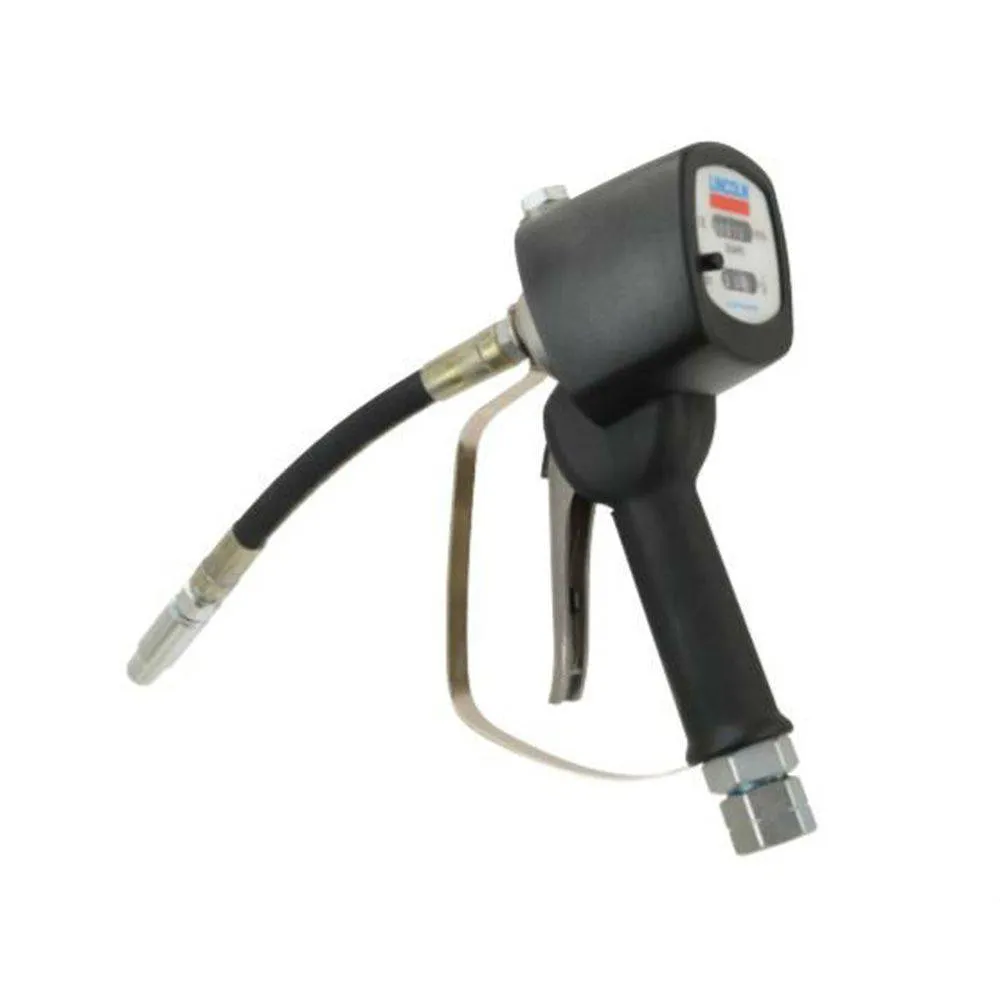

Lincoln® Odometer Style Mechanical Quart Meter
Lincoln's odometer-style mechanical meter is ideal for indoor and outdoor fluid dispensing applications. Featuring an odometer-style mechanical readout, the offering comes in either a liter or quart version. The non-resettable totaliser lets you keep track of product usage over time.
Package Includes:
- Mechanical oil meter
- Rigid or flexible extension with non-drip nozzle
- Trigger handle guard
- Black protective shroud
- Instruction manual
- Adapter for connecting extension in the 90-degree configuration
| Model No. | 279323 |
| Brand | Lincoln |
| Lubricants | oils up to SAE 140, ATFs, and gear oils and ready-to-use engine coolants (not concentrates) |
| Accuracy | /- 1% of reading |
| Flow Range | 0.26 to 8 gal./min. (1 to 30 liter/min.) |
| Working Pressure | max. up to 10,350 kPa, 1500psi/103.5 bar |
| Pressure Loss | 100 kPa, 14.4 psi (1bar) at 3.2 gal./min. (12 liter/min.) without nozzle using calibration fluid |
| Weight | 2.55 lbs. (1.16 kg) unpackaged |
| Swivel Inlet | 1/2" NPT (f) |
| Fluid Outlets | 3/8" (9.5mm) NPSI (f) |
| Wetted Components | aluminum, acetal, steel, nitrile rubber |
